Cable glands are essential mechanical devices designed to secure, protect, and seal electrical cables where they enter equipment or enclosures, providing strain relief while maintaining environmental protection against dust, moisture, and potentially hazardous elements across industrial, commercial, and domestic electrical installations.
Types of Cable Gland Materials
Cable gland materials significantly impact performance, durability, and suitability for specific environments. The choice of material depends on factors such as environmental conditions, chemical exposure, temperature requirements, and mechanical stresses.
Plastic Cable Glands
Plastic cable glands, typically made from polyamide (PA), offer excellent cost-effectiveness and versatility for both indoor and outdoor applications. These lightweight options provide:
- Resistance to salt water, grease, and weak acids
- Superior corrosion resistance compared to metal alternatives
- Wide cable compatibility due to their flexible claw and seal design
- Cost-effective solutions for control panels, lighting installations, and general industrial enclosures
Variants include polycarbonate (used in flange elbows), polyethylene (PE) for thread seals, and polyvinylidene fluoride (PVDF) which combines excellent chemical durability with strong mechanical properties.

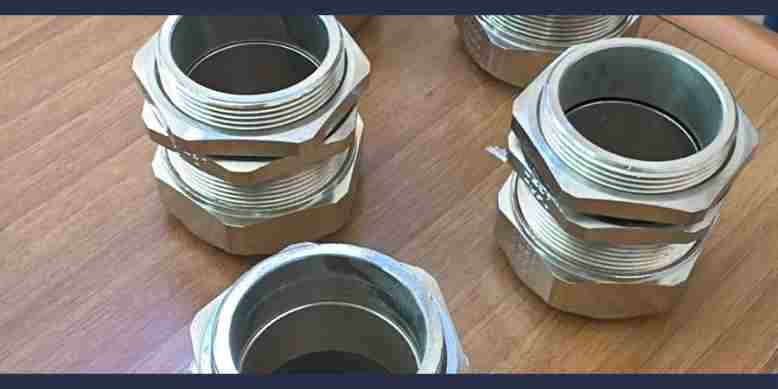

Metal Cable GlandsBrass Cable Glands
Brass cable glands represent the industry standard for demanding applications, offering:
- High durability and mechanical stability
- Excellent performance in dry atmospheres, freshwater, steam, and with mineral oils and fuels
- Suitability for power distribution and industrial applications
- Superior corrosion resistance compared to plastic alternatives
Nickel-plated brass versions provide enhanced wear and corrosion resistance, making them suitable for more challenging environments.
Stainless Steel Cable Glands
Stainless steel glands deliver premium performance in harsh conditions:
- Grade 1.4305 (AISI 303) offers good resistance to diluted organic and oxidizing acids, bases, and neutral/alkaline salt solutions
- Grade 1.4404 (AISI 316L) provides exceptional corrosion resistance, ideal for chemically aggressive environments and offshore applications
- Maximum corrosion resistance among all cable gland materials, ensuring extended service life in extreme conditions
- Perfect for heavy-duty applications in marine, chemical, and highly corrosive settings
Aluminum Cable Glands
Aluminum glands offer a balance between performance and weight:
- Suitable for outdoor applications exposed to environmental stresses, such as street lighting
- Often used in armored cable applications alongside brass options
- Lightweight alternative to brass and stainless steel while maintaining good durability
Specialized Materials and Seals
Cable gland performance is often enhanced by specialized sealing materials:
- NBR (Nitrile Butadiene Rubber) seals offer excellent resistance to oils and fuels
- FPM (Fluoroelastomer) seals handle high temperatures up to 200°C and provide superior resistance to oils, UV exposure, and ozone
- TPE (Thermoplastic Elastomer) offers good weathering resistance and stands up to diluted acids and bases
- MVQ silicone performs exceptionally well in extreme temperatures (-60°C to 200°C)
- PTFE (Polytetrafluoroethylene) is ideal for applications requiring resistance to extremely high temperatures up to 250°C
The selection of appropriate cable gland materials must consider the operating environment, including temperature ranges, chemical exposure, mechanical stresses, and required ingress protection ratings to ensure optimal performance and longevity of electrical installations.
IP Rating Protection Levels
IP ratings, also known as Ingress Protection codes, consist of two digits that define the level of protection a cable gland provides against environmental elements. The first digit (0-6) indicates protection against solid objects and dust, ranging from no protection (0) to total dust protection (6). For example, a rating of 4 means protection against solid objects larger than 1mm such as wires and nails, while 6 means complete dust-tight protection.
The second digit (0-9) specifies moisture protection, with higher numbers indicating greater water resistance. Common ratings in cable glands include IP65 (dust-tight and protected against low-pressure water jets), IP66 (protected against powerful water jets), and IP67 (dust-tight and protected against temporary immersion). The appropriate IP rating for a cable gland should be selected based on the specific installation environment and potential exposure to elements to ensure proper sealing and protection of electrical connections.
Explosion-Proof Gland Applications
Explosion-proof cable glands are critical safety components used in hazardous environments where flammable gases, vapors, or combustible dust create explosion risks. These specialized glands are extensively deployed in industries such as oil and gas (offshore rigs, refineries, and pipelines), chemical processing plants, mining operations, and marine environments. Certified under standards like ATEX and IECEx, these glands prevent the propagation of flames while maintaining the integrity of electrical connections in potentially explosive atmospheres.
The selection of explosion-proof glands depends on the specific hazardous area classification and protection requirements. They’re designed for use in various zones including Zone 1, Zone 2, Zone 21, and Zone 22 environments, with barrier glands specifically required in Ex d environments unless cables meet strict criteria (circular, compact, with extruded bedding/sheath, and non-hygroscopic fillers). These robust components operate reliably in extreme conditions, withstanding temperatures from -60°C to +300°C while providing IP68 protection against environmental factors. Industries frequently rely on explosion-proof glands constructed from corrosion-resistant materials like nickel-plated brass or stainless steel, particularly in offshore and petrochemical applications where exposure to harsh chemicals and saltwater is common.
Conclusion
Cable glands are more than just accessories—they are essential components that ensure the safety, longevity, and reliability of electrical systems across a broad range of environments. From material selection and IP rating considerations to explosion-proof requirements, choosing the right cable gland is critical to maintaining system integrity and meeting industry standards. With a deep understanding of application-specific needs, electrical professionals can make informed decisions that protect both their equipment and personnel.
